Fernsehempfänger F6 10 Kanäle

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1953/1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 96709

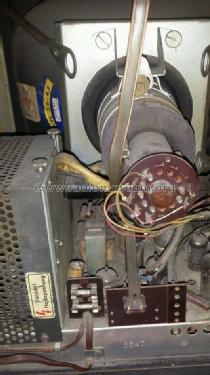

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 ECC81 EF80 EF80 EF80 EB41 PL83 ECL80 ECC82 ECC82 PL81 PL82 PY81 EY51 EF80 EQ80 PL83 MW36-44

• Number of Transistors

• Semiconductors
• E220C80 E220C80 E220C80 E220C80

• Main principle
• Superhet with RF-stage; ZF/IF 29000/5500 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fernsehempfänger F6 [10 Kanäle] - Graetz, Altena Westfalen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 475 x 410 x 455 mm / 18.7 x 16.1 x 17.9 inch

• Notes

• 10 VHF-Kanäle. Als Zubehör wurde ein "Spezialtisch mit Lautsprechersonderanlage" (2 Lautsprecher) angeboten.

  Ton-Demodulation mit Phasenwinkel-Detektor (EQ80).

• Price in first year of sale
• 998.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1953/54

• Mentioned in
• Funk-Technik (FT)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
