Fähnrich Color Sensor 2541 51431485, 51431487 Ch= 58616013
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1974/1975
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 190925

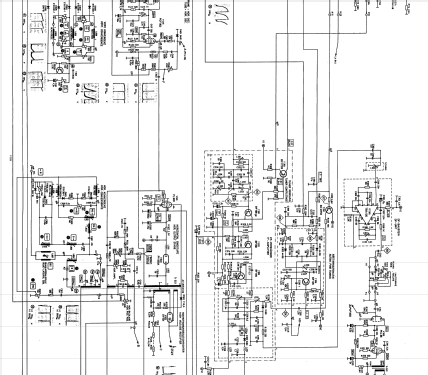

Bild aus original Service-Manual
Funk-Technik 11/1975, S. 330
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 44
- Semiconductors
- 1N4148 1N60 E15C90 E15C90 AA113 AA119 BA110 BA145 BA182 BA243 BAV19 BB105 BB142 BY133 BY164 E15C100 N1 OA91 ZTK33 AF106 AF239 AF267 BC170 BC171 BC172 BC174 BC237 BC251 BC252 BD233 BF125 BF137 BF196 BF197 BF198 BF199 BF458 SAS560 SAS570 TBA120
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Fähnrich Color Sensor 2541 51431485, 51431487 Ch= 58616013 - Graetz, Altena Westfalen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 430 x 495 mm / 25.6 x 16.9 x 19.5 inch
- Notes
-
Graetz Fähnrich Color Sensor 2541
- Farbfernsehempfänger
- VHF-UHF-Tuner
- PAL-Norm
- 8 Programmspeicher, über Sensortasten anwählbar
- 2x240 Ohm Antennenanschlüsse für VHF/UHF
- Leistungsaufnahme ca.240W
- 44 Transistoren
- 3 ICs
- 7 Röhren (inkl. Bildröhre)
- 70 Dioden
- 3 Gleichrichter
- Ovallautsprecher 13x15cm
- Gewicht 29,5kG
Mehrfach vorhandene Transistoren/Dioden nur einmal aufgeführt.
Ausführung in Nußbaum-Dekor oder Altweiß. Verkauf über die Weltfunk anläßlich der Funkausstellung 1975.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
