• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1953

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 245626

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 ECC81 EF80 EF80 EF80 EB41 PL83 ECL80 ECC82 PL82 EF80 EQ80 PL83 ECC82 PL81 PY81 EY51 MW43-64

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

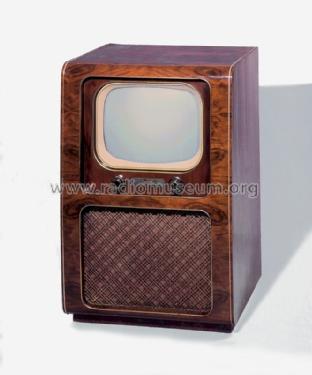

• Model: Fernseh-Standgerät F10 [Prototyp] - Graetz, Altena Westfalen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 630 x 960 x 510 mm / 24.8 x 37.8 x 20.1 inch

• Notes

• Vermutlich Prototyp des Graetz F10 Standgeräts jedoch ohne Türen.

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
