Flip 302 AF274 Typ 5233 03 63 / 5233 03 65 / 5233 03 67 / 5233 03 69
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1971–1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28907
Flip beige Front
Vorderseite Flip 302
Flip beige Rückfront

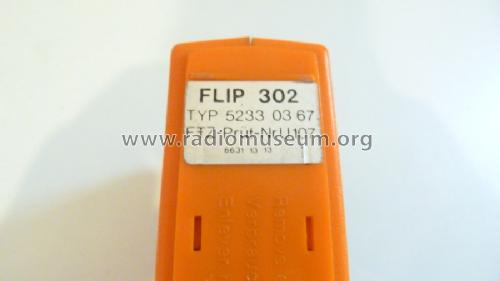

Flip beige Typenschild

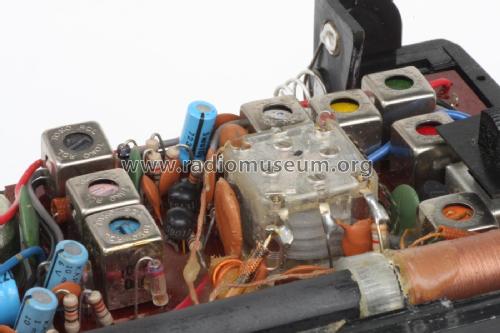

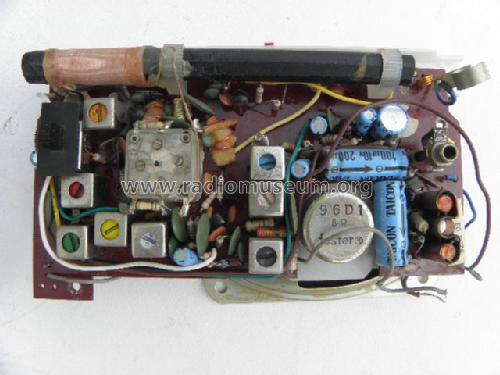

Radio zerlegt
Seitenansicht Flip 302
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Flip 302 AF274 Typ 5233 03 63 / 5233 03 65 / 5233 03 67 / 5233 03 69 - Graetz, Altena Westfalen
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 160 x 102 x 45 mm / 6.3 x 4 x 1.8 inch
- Notes
-
4 Gehäuse-Ausführungen:
- Typ 5233 03 63: schwarz
- Typ 5233 03 65: blau
- Typ 5233 03 67: orange
- Typ 5233 03 69: beige
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
