Flirt 40H
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1805
Ebay-Verk.: 26hs50, ArtNr.: 352567955094
Ebay-Verk.: 26hs50, ArtNr.: 352567955094
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Power out
- 0.14 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Flirt 40H - Graetz, Altena Westfalen
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 64 x 96 x 27 mm / 2.5 x 3.8 x 1.1 inch
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Source of data
- Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
- Other Models
-
Here you find 774 models, 695 with images and 594 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Graetz, Altena (Westfalen)
Collections
The model Flirt is part of the collections of the following members.
Forum contributions about this model: Graetz, Altena: Flirt 40H
Threads: 1 | Posts: 1

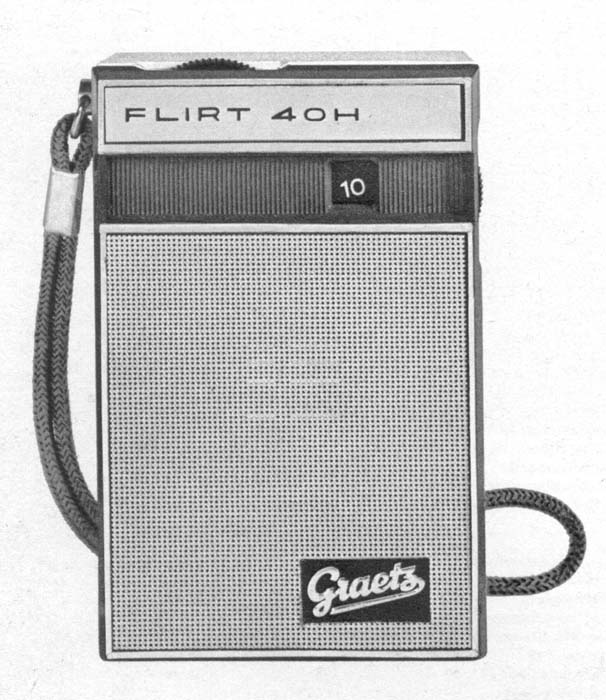

Die bei diesem Modell hinterlegten Fotos sind ebenso wie das Schaltbild falsch. Sie zeigen das Modell Flirt 40F. Das Schaltbild gehört ebenfalls zum Flirt 40F. Ein Bild (Scan aus Graetz-Publikation, siehe Anlage) vom Flirt 40H habe ich hoch geladen.
