• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1965/1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110799

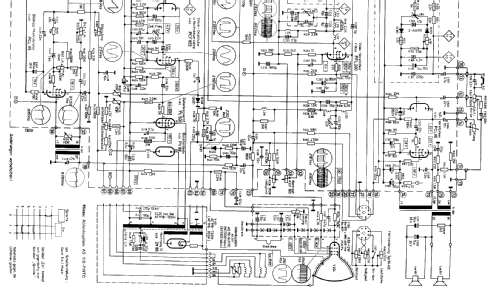

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• A65-11W

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gouverneur G825 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 750 x 550 x 420 mm / 29.5 x 21.7 x 16.5 inch

• Notes
• VHF/UHF.

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
