• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25336

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM34 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10,7 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 150, 220, 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

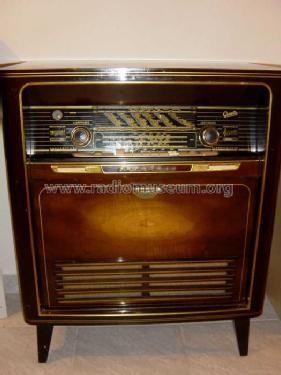

• Model: Grazioso 430 - Graetz, Altena Westfalen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 680 x 825 x 400 mm / 26.8 x 32.5 x 15.7 inch

• Notes

• Siehe auch Raumklang-Musiktruhe Graetz Grazioso 4R/430

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie

• Other Models

• Here you find 776 models, 696 with images and 595 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
