• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1959–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22225

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC91 EL84 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460 / 6750 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

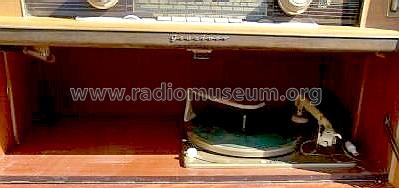

• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 11.2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

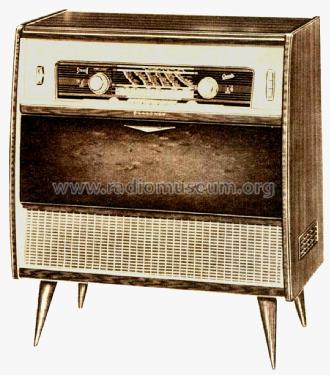

• Model: Grazioso 4816 - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 750 x 835 x 410 mm / 29.5 x 32.9 x 16.1 inch

• Net weight (2.2 lb = 1 kg)
• 29.5 kg / 64 lb 15.6 oz (64.978 lb)

• Price in first year of sale
• 648.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Literature/Schematics (1)

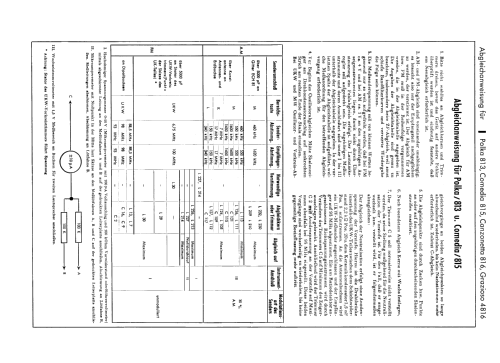

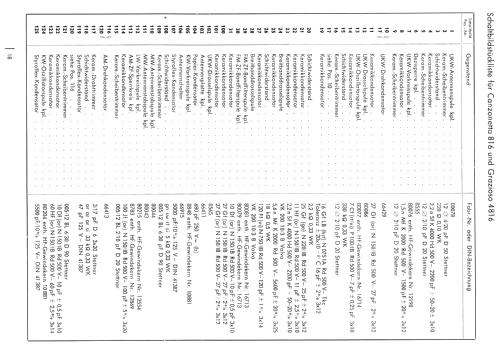

• -- Original-techn. papers. (Service-Manual 7.59L)

• Literature/Schematics (2)
• - - Manufacturers Literature (Produkt-Katalog 1959/60)
