• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296617

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM34 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

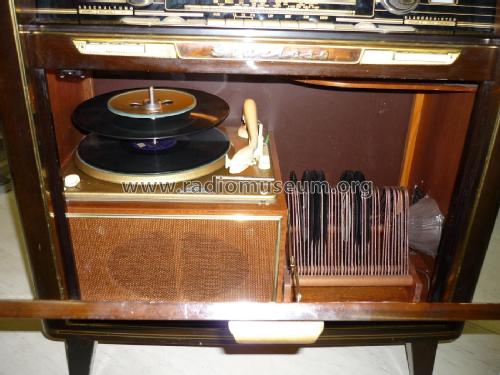

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Grazioso 4R/430 - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 680 x 825 x 400 mm / 26.8 x 32.5 x 15.7 inch

• Notes

• Raumklang-Musiktruhe Graetz Grazioso 4R/430

  1 Tief-Mittel-Ton-Lautsprecher oval, Flanschmaß 25 x 18 cm,
  1 Hochton-Lautsprecher, Flanschmaß 8,5 x 8,5 cm

  Siehe auch Graetz Grazioso 430.

• Net weight (2.2 lb = 1 kg)
• 26.4 kg / 58 lb 2.4 oz (58.15 lb)

• Author
• Model page created by Dieter Schulte-Kulkmann. See "Data change" for further contributors.
