Kalif Color 1048
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 108094

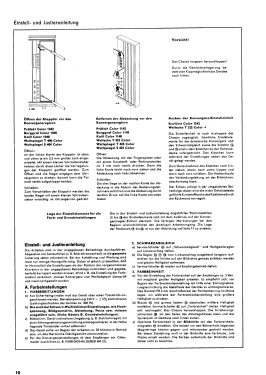

Bild aus dem Service Manual 3
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 41
- Semiconductors
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Kalif Color 1048 - Graetz, Altena Westfalen
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1010 x 915 x 590 mm / 39.8 x 36 x 23.2 inch
- Notes
- Farbfernsehgerät. Luxus-Ausführung. VHF/UHF-Allbereichs-Tuner mit 2× AF239.
- Net weight (2.2 lb = 1 kg)
- 57 kg / 125 lb 8.8 oz (125.551 lb)
- Price in first year of sale
- 2,495.00 DM
- Source of data
- Handbuch VDRG 1967/1968
- Mentioned in
- -- Original prospect or advert
