Kurfürst
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1954/1955
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 19998
Q: Katalog RF/FS-Großhandel 1954/55

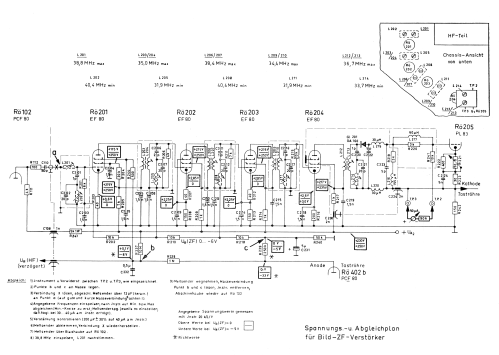

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- PCC84 PCF80 UC92 UC92 UM80 UCH81 UBF80 UF89 UL41 EF80 EF80 EF80 EF80 PL83 PCF80 6CS6 or EH90 ECC82 ECC82 PL82 PL81 PY81 or PY83 EY51 or EY86 MW43-64
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900/5500 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Kurfürst - Graetz, Altena Westfalen
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 650 x 940 x 536 mm / 25.6 x 37 x 21.1 inch
- Notes
-
10 VHF-Kanäle + 2 Reserve. Einbau eines Dezi-Tuners für UHF vorgesehen.
Rundfunkteil: LMKU, 6 AM- und 9 FM-Kreise, AM-ZF 472 kHz, FM 10,7 MHz, Drucktasten.Modell wurde im Folgejahrgang 1955/56 mit leicht geänderten Daten als Graetz Kurfürst F22 angeboten. Die Röhrenbestückung ist identisch.
- Net weight (2.2 lb = 1 kg)
- 57.5 kg / 126 lb 10.4 oz (126.652 lb)
- Price in first year of sale
- 1,598.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1954/55
- Literature/Schematics (1)
- Rundfunk-Phono-Fernseh-Katalog 1954/55 S.113 (Thiele)
- Literature/Schematics (2)
- -- Original-techn. papers. (Graetz Reparaturdienst-Liste Kurfürst und Regent, datiert 1/1955)
