• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1958/1959

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 94062

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• ECC85 PCC88 PCF80 EF80 PL83 PM84 ECH81 EF89 EM84 EH90 ECC81 PL36 PY81 EY86 PCL82 EF83 EL84 AW43-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

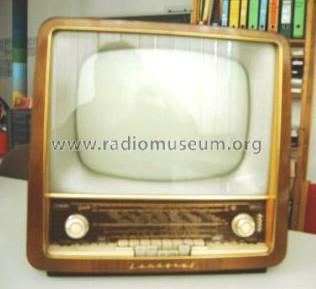

• Model: Landgraf F167 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 510 x 410 mm / 20.5 x 20.1 x 16.1 inch

• Notes
• Graetz F167;
  43-cm-Tischgerät mit organisch eingebautem Rundfunkteil, 6/10 Kreise, LMKU. 2 permanentdynamische Lautsprecher und 1 Druckkammersystem (Schallkompressor). TV-Band I und III (VHF), UHF-Tuner nachrüstbar. Einige Röhren sind mehrfach vorhanden.
  Kabel-Fernbedienung: Typ 65926.

• Price in first year of sale
• 1,100.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Author
• Model page created by Enno Janke. See "Data change" for further contributors.
