• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1960/1961

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 79734

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 ECC83 EL95 EL95 PC92 PCF80 EF80 EF80 EF80 PCL84 ECH81 PCF80 PL36 PY88 DY86 PCL82 EF80 PCL82 AW53-88

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

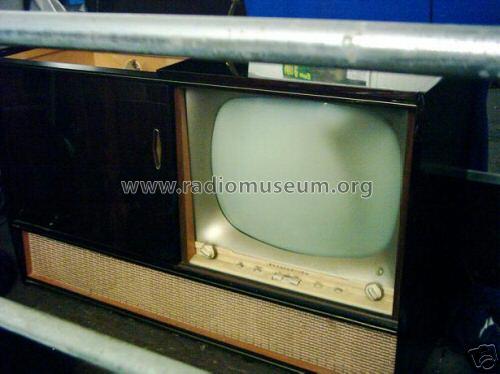

• Model: Maharadscha F381 - Graetz, Altena Westfalen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1200 x 924 x 456 mm / 47.2 x 36.4 x 18 inch

• Notes

• LMKU + VHF, auch mit "DEZI Teil" UHF, UHF Tuner mit 2x PC86, TV-Chassis ohne UHF= 300F; mit UHF= 300FD; Rundfunkchassis = Musica 916, Stereo 10-Plattenwechsler PE 66. Mehrpreis für UHF-Teil: 95,- DM.

  Ersatzzeilentrafo

• Net weight (2.2 lb = 1 kg)
• 82 kg / 180 lb 9.9 oz (180.617 lb)

• Price in first year of sale
• 1,598.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Author
• Model page created by Michael John. See "Data change" for further contributors.

• Other Models

• Here you find 776 models, 696 with images and 595 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Graetz, Altena (Westfalen)
