Melodia M618
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21664

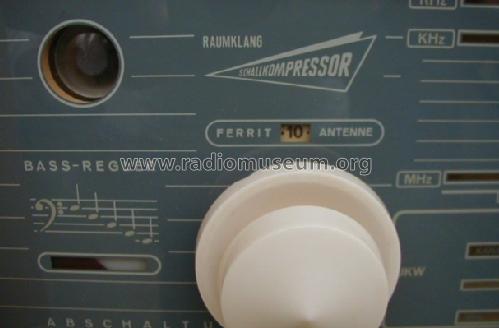

aus ebay, mit Erlaubnis des Verkäufers em85
aus ebay, mit Erlaubnis des Verkäufers em85
Modern Variante. Quelle: eBay Deutschland

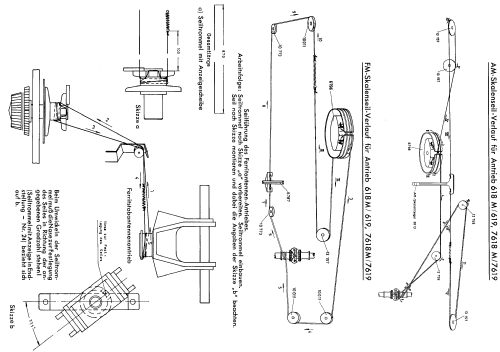

aus Reparaturdienst-Liste
aus ebay, mit Erlaubnis des Verkäufers em85
aus ebay, mit Erlaubnis des Verkäufers em85

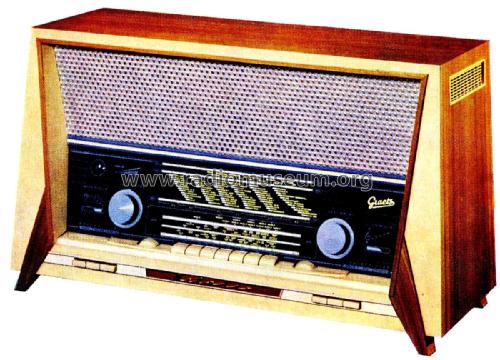

Q: Graetz Nachrichten Katalog 58/22
Q: Graetz Nachrichten Katalog 58/22
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 460/6750 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150: 220-240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 5.6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Melodia M618 - Graetz, Altena Westfalen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 645 x 370 x 270 mm / 25.4 x 14.6 x 10.6 inch
- Notes
-
Ferritantenne dreh - und schaltbar.
Raumklang mit Schallkompressor.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Price in first year of sale
- 418.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Literature/Schematics (1)
- - - Manufacturers Literature (Graetz Nachrichten Katalog 58/22)
- Literature/Schematics (2)
- -- Original-techn. papers.
