• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81100

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM34 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 150, 220, 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

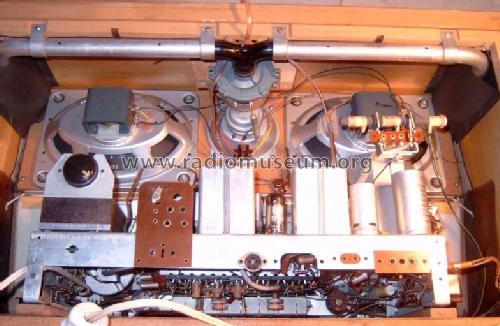

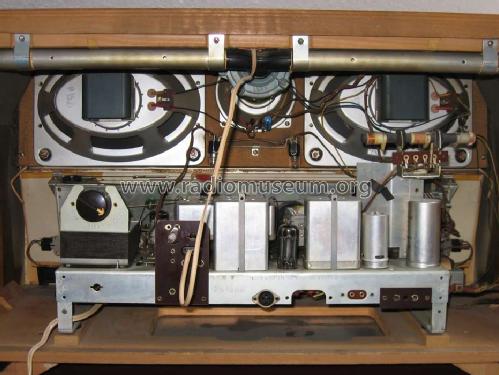

• Model: Melodia M 4R/418 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 372 x 270 mm / 25.2 x 14.6 x 10.6 inch

• Notes

•  Ähnlich dem Gerät "Melodia M 418".
  Laut Hersteller Unterschiede in den Ersatzteilen! Siehe Reparaturdienstliste.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 398.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jens Dehne. See "Data change" for further contributors.
