• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26155

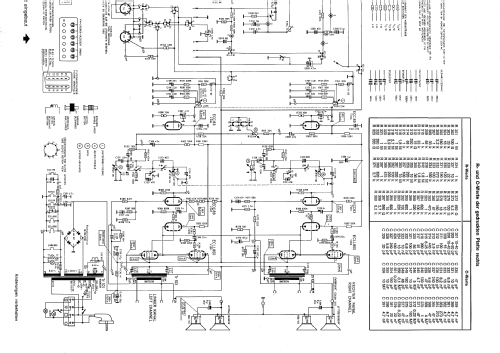

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EMM803 ECC83 ECLL800 ECLL800

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

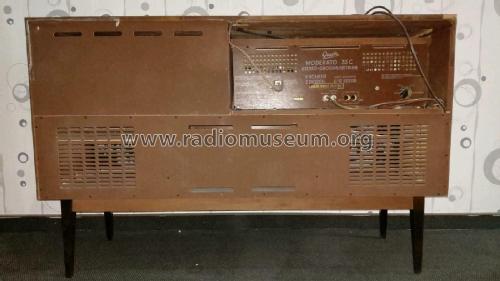

• Model: Moderato 33C - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1180 x 760 x 370 mm / 46.5 x 29.9 x 14.6 inch

• Notes
• Transistoren: 4× AC125; Dioden: 2× AA113, 6× AA112.

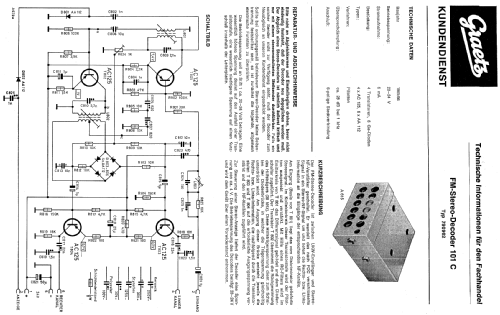

  Rundfunk-Chassis = 23C; Stereo-Decoder eingebaut; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8 W.
  Phono-Chassis = Dual 1011.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966
