Moderato 6 1017 Nussb.pol.

Graetz, Altena (Westfalen)

Data
Forum
Pictures
Collections

  • Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23910

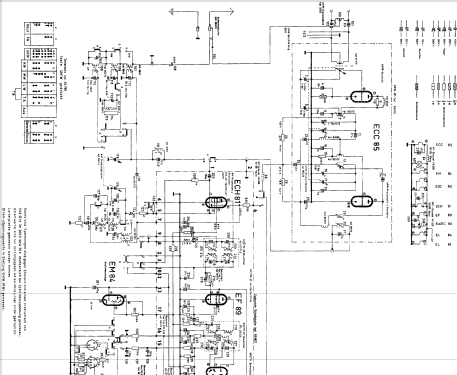

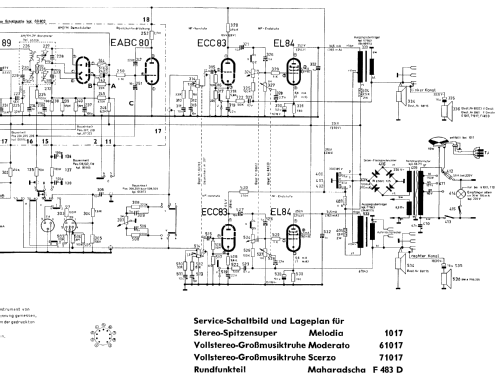

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Moderato 6 1017 [Nussb.pol.] - Graetz, Altena Westfalen
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1050 x 730 x 390 mm / 41.3 x 28.7 x 15.4 inch
  • Notes
  • Ferritantenne schaltbar. Stereo-NF-Verstärker mit 2 Endstufen je 4 W. Phono-Chassis = Perpetuum-Ebner PE66.
  • Net weight (2.2 lb = 1 kg)
  • 34 kg / 74 lb 14.2 oz (74.89 lb)
  • Price in first year of sale
  • 698.00 DM
  • External source of data
  • Erb
