• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1759

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

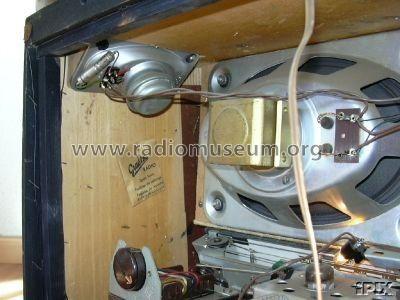

• Loudspeaker
• 3 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

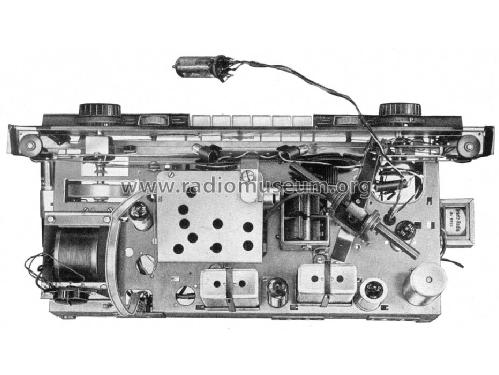

• Model: Musica 4R [1955] - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 380 x 270 mm / 23.6 x 15 x 10.6 inch

• Notes
• drehbare Ferritantenne für LW und MW.

• Net weight (2.2 lb = 1 kg)
• 12.2 kg / 26 lb 14 oz (26.872 lb)

• Price in first year of sale
• 318.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 1, Ernst Erb
