Musica 617 dunkel

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21660

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

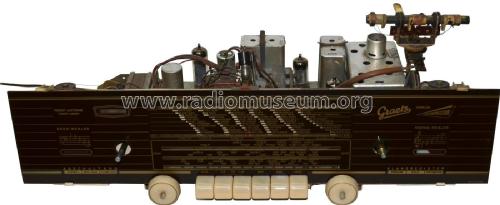

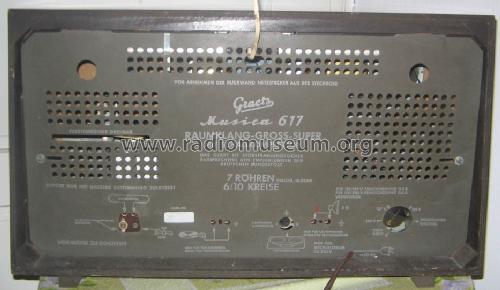

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/6750 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Musica 617 [dunkel] - Graetz, Altena Westfalen

• Shape

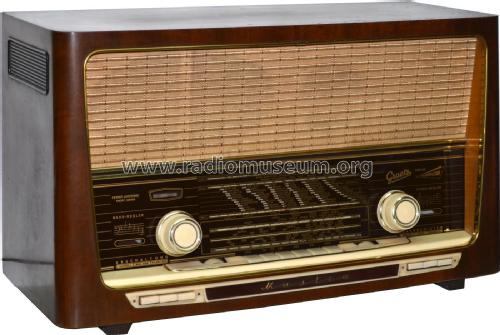

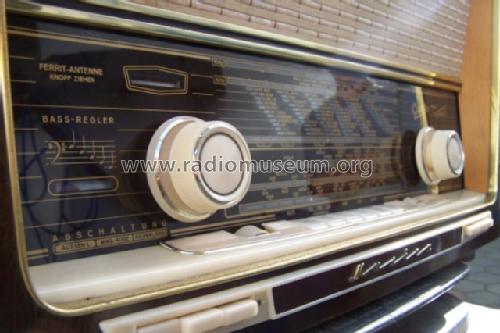

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 610 x 355 x 250 mm / 24 x 14 x 9.8 inch

• Notes

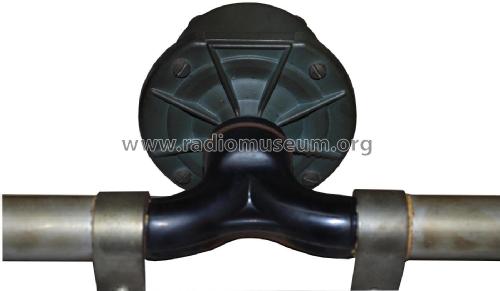

•   Gerät mit Schallkompressor. Ferritantenne schaltbar.

• Net weight (2.2 lb = 1 kg)
• 10.7 kg / 23 lb 9.1 oz (23.568 lb)

• Price in first year of sale
• 348.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• - - Manufacturers Literature (Graetz Nachrichten Katalog 58/22)

• Literature/Schematics (1)
• -- Original-techn. papers.
