• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1809

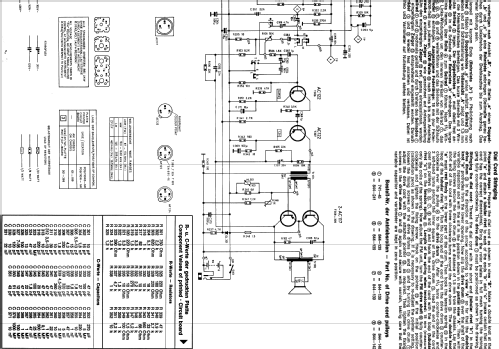

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF134 AF125 AF137 AF137 AF138 AC122 AC122 AC117 AC117

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 × 1,5 V / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

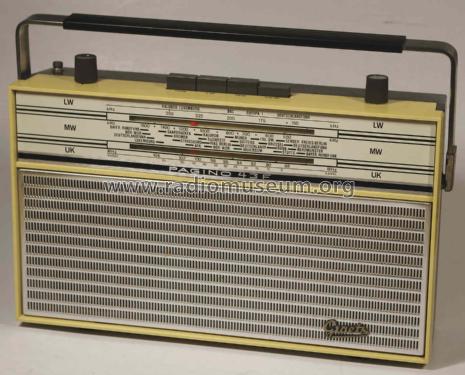

• Model: Pagino L43F - Graetz, Altena Westfalen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 160 x 80 mm / 11 x 6.3 x 3.1 inch

• Notes
• Auf Wunsch mit Netzteil.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
