• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28187

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC535 2SC461 2SC460 2SC460 2SC460 2SB75 2SB75 2SB156 2SB156 2SB370

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.55 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

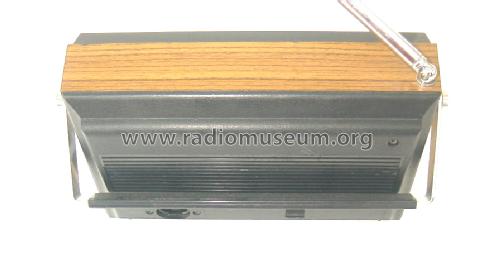

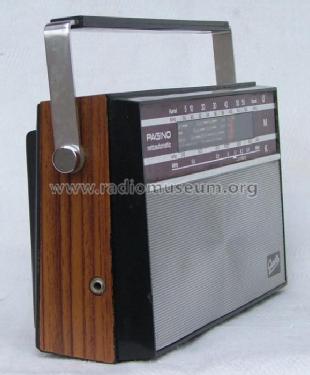

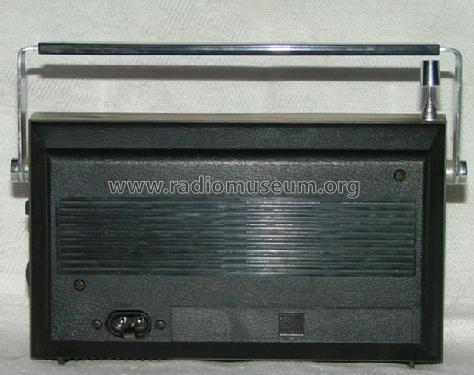

• Model: Pagino netzautomatic 301 - Graetz, Altena Westfalen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 121 x 62 mm / 8.7 x 4.8 x 2.4 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
