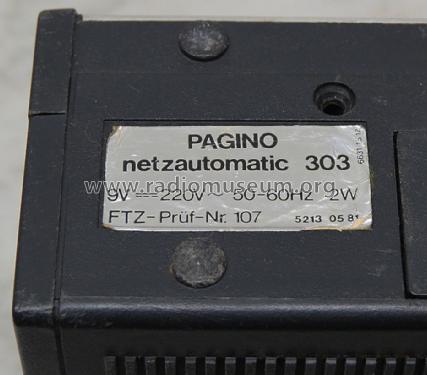

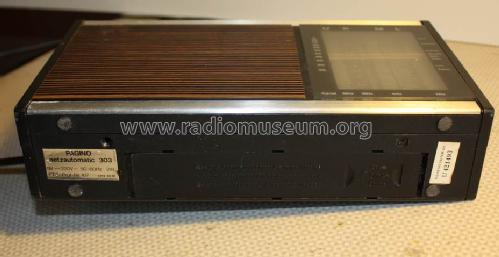

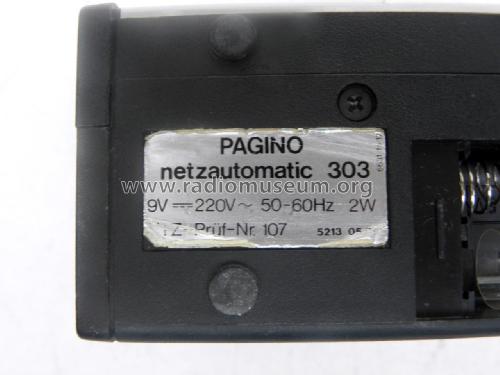

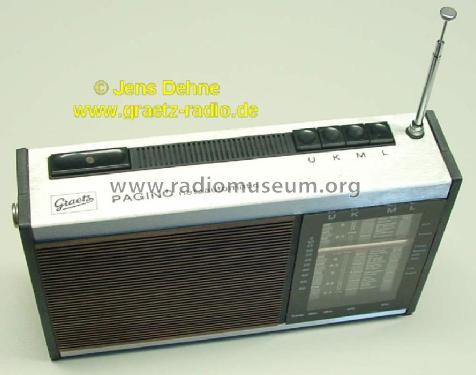

Pagino netzautomatic 303
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1972/1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28909
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / 6×1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pagino netzautomatic 303 - Graetz, Altena Westfalen
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 135 x 60 mm / 9.8 x 5.3 x 2.4 inch
- Notes
- Nichtabschaltbare UKW-Scharfabstimmung.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Price in first year of sale
- 149.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
