Polka 813

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1959–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22077

• Picture
• Schematics

Previous Next

Previous Next

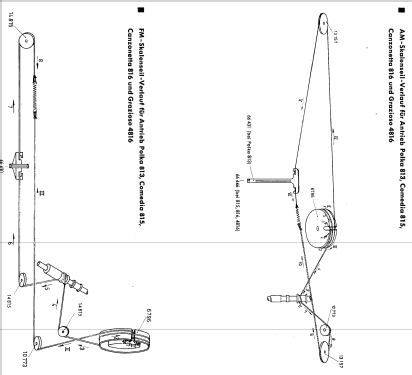

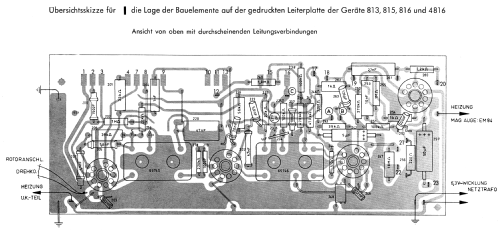

Click on the schematic thumbnail to request the schematic as a free document.

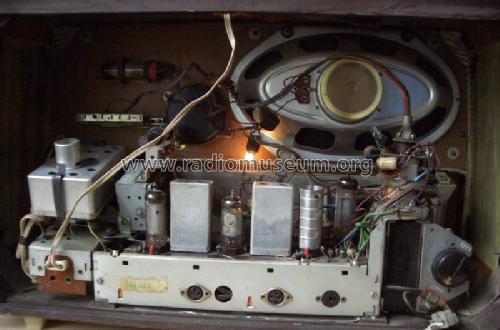

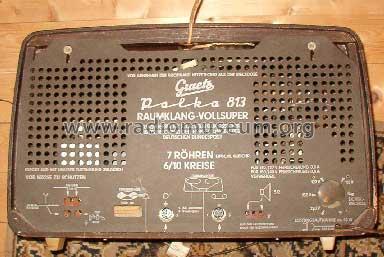

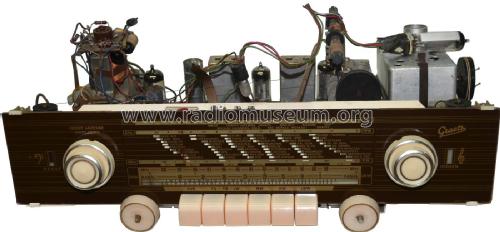

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors

• Semiconductors
• B250C75

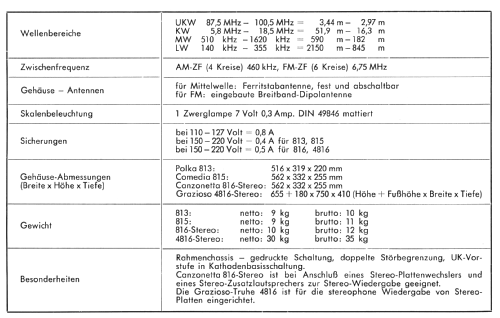

• Main principle
• Superheterodyne (common); ZF/IF 460 / 6750 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

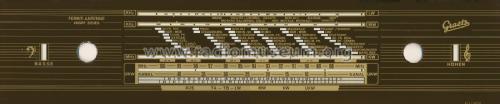

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

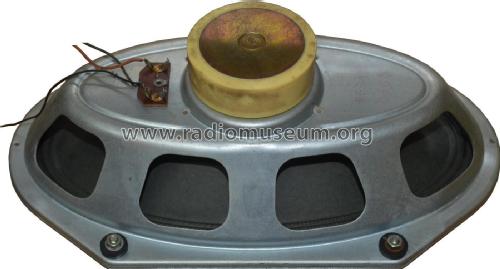

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

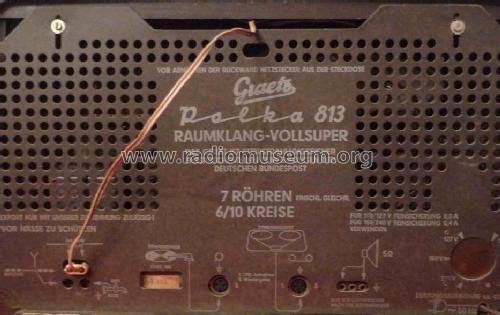

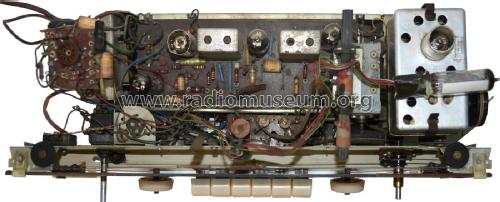

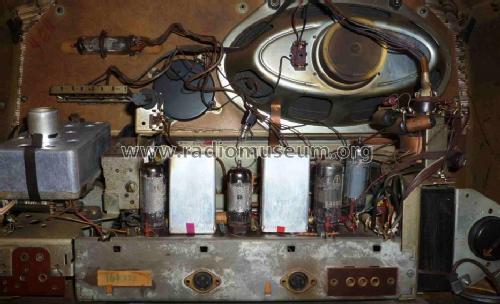

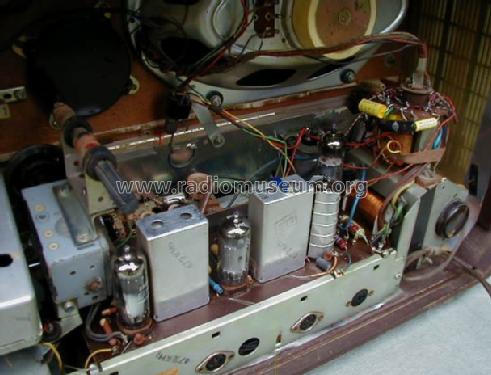

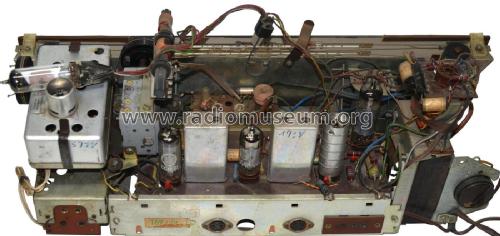

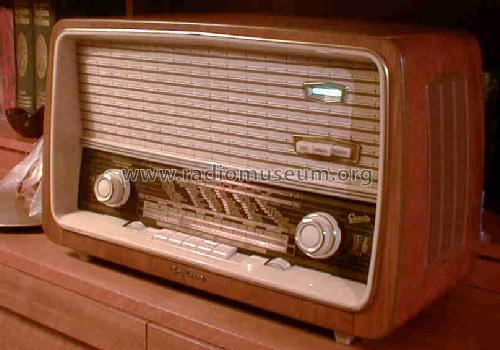

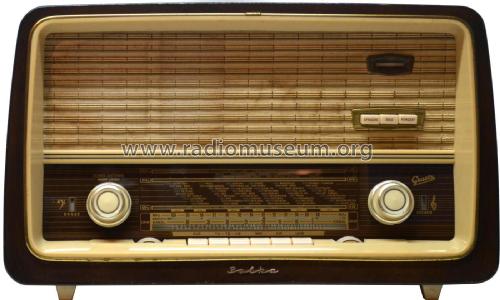

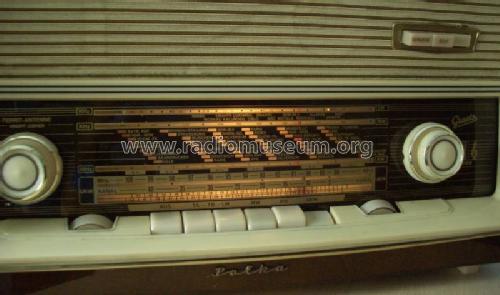

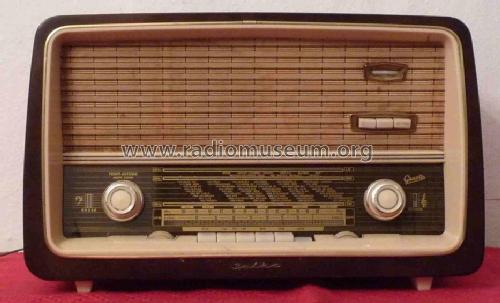

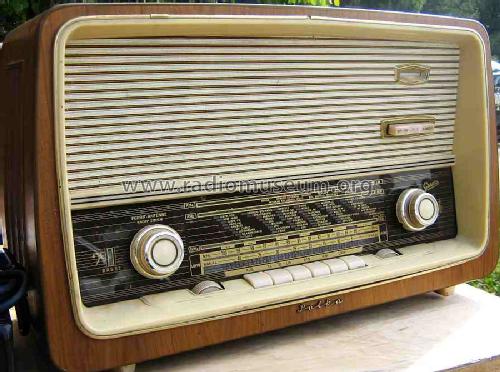

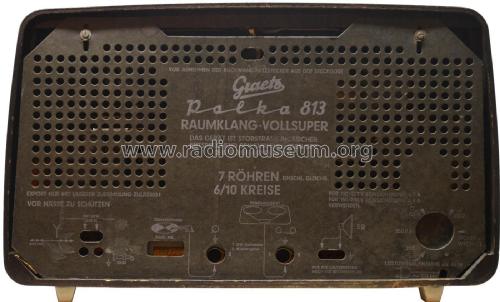

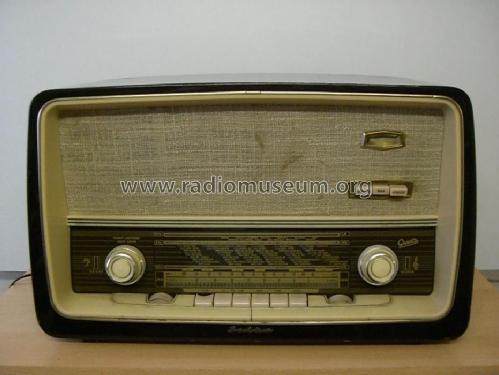

• Model: Polka 813 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 515 x 320 x 220 mm / 20.3 x 12.6 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Price in first year of sale
• 285.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

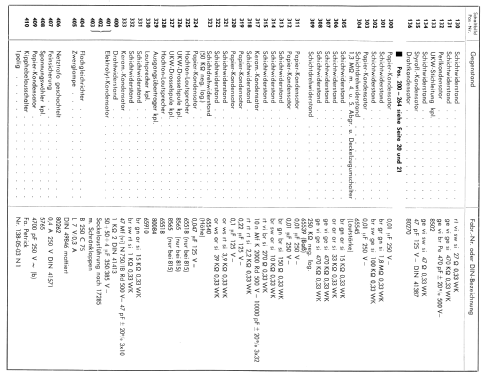

• Literature/Schematics (1)

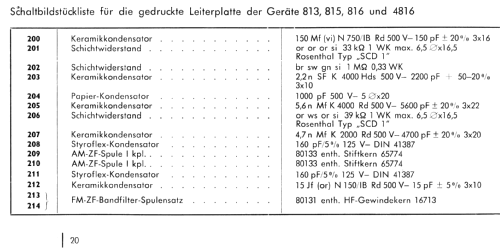

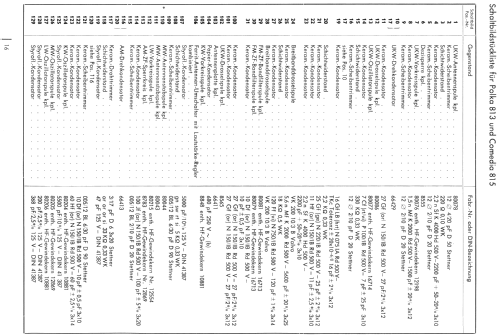

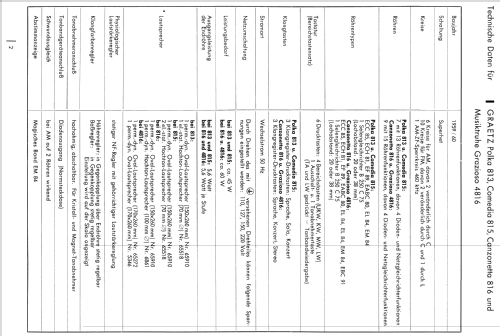

• -- Original-techn. papers. (Service-Manual 7.59L)

• Literature/Schematics (2)
• - - Manufacturers Literature (Produkt-Katalog 1959/60)

• Other Models

• Here you find 776 models, 696 with images and 595 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
