• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28832

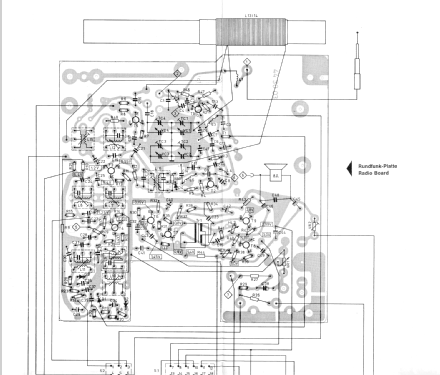

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / (4 × 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.35 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

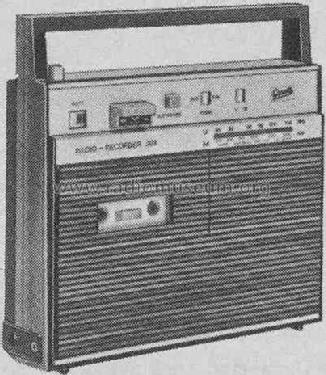

• Model: Radio-Recorder 301 - Graetz, Altena Westfalen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 233 x 240 x 66 mm / 9.2 x 9.4 x 2.6 inch

• Notes
• Aussteuerungsautomatik für Aufnahme nicht abschaltbar. Netzbetrieb mit zusätzlichem Netzteil möglich; Fremdspannungsbuchse 6 V.

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Price in first year of sale
• 199.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973
