• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1975–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 125224

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-240 / 6×1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

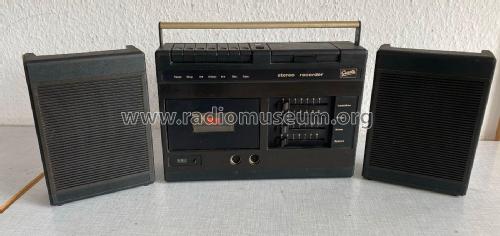

• Model: Stereo Recorder 304 - Graetz, Altena Westfalen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 225 x 95 mm / 13 x 8.9 x 3.7 inch

• Notes
• ICs: 2.
  Ausgangsleistung: 2× 2 W. Frequenzumfang mit Fe₂O₃-Band: 60···10000 Hz, mit CrO₂-Band: 60···12500 Hz. Lautsprecher sind abnehmbar hinten am Gerät befestigt.

• Net weight (2.2 lb = 1 kg)
• 4.9 kg / 10 lb 12.7 oz (10.793 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 19777/78)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
