UKW-Super-Vorsatz (UKW-Einbausuper) UK83WN
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1954–1956
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 19646
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Tuned circuits
- 9 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

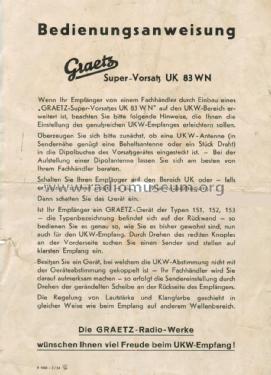

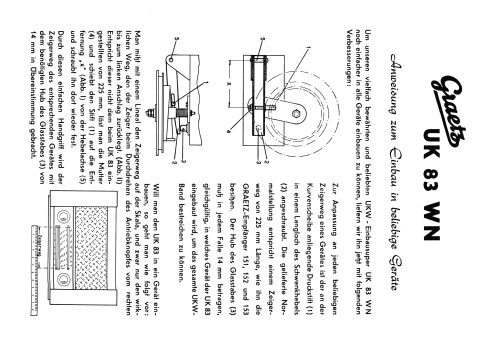

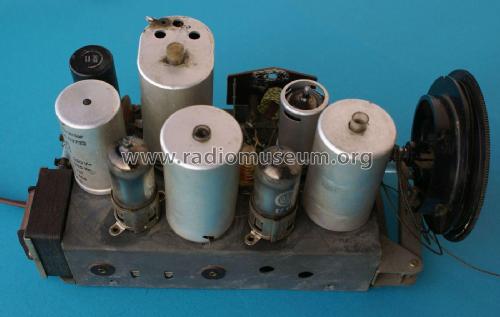

- Model: UKW-Super-Vorsatz UK83WN - Graetz, Altena Westfalen
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 250 x 120 x 100 mm / 9.8 x 4.7 x 3.9 inch
- Notes
-
Heiztrafo 6,3 V.
Keine Netztrennung !!!
- Price in first year of sale
- 109.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1955/56
