• Country
• Germany

• Manufacturer / Brand
• Graetz Radio, Berlin Treptow SO36, Vorkrieg

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1703

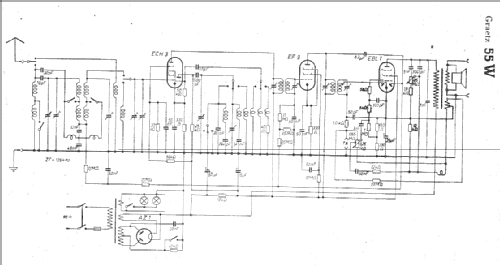

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 55W - Graetz Radio, Berlin Treptow

• Shape
• Tablemodel, low profile (big size).

• Notes

• Ch= Philips 655A. Sogenanntes Verlagerungsgerät.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Funkgeschichte der GFGF (Nr. 129 (2000) und 234, 235, 236 (2017))
