Graetzor Rheingold Super 36W
Graetz Radio, Berlin Treptow SO36, Vorkrieg
- Country
- Germany
- Manufacturer / Brand
- Graetz Radio, Berlin Treptow SO36, Vorkrieg
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1670
H.Hennings 1934/35
Q: Radio-Katalog W. Reuter 1935-36
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 315 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3.1 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Graetzor Rheingold Super 36W - Graetz Radio, Berlin Treptow
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 380 x 445 x 227 mm / 15 x 17.5 x 8.9 inch
- Notes
- In der Werbung auch "Super 36W". Gehäusevarianten mit waagerechten Zierleisten im unteren Teil des Lautsprechers. Hinter der Pultskala wird die dem gewählen Wellenbereich entsprechende Skala sichtbar geschaltet. Die anderen Skalen bleiben in halbkreisförmiger Anordnung verdeckt.
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Price in first year of sale
- 288.00 RM
- Source of data

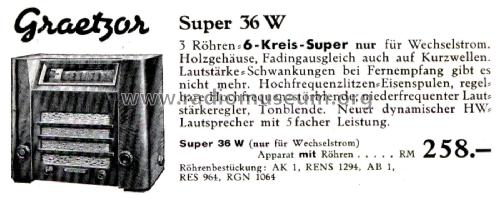

- Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Literature/Schematics (1)
- -- Original-techn. papers.
