• Country
• Germany

• Manufacturer / Brand
• Graetz Radio, Berlin Treptow SO36, Vorkrieg

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1689

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CCH1 CF3 CB2 CL4 C/EM2 CY1 U920

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

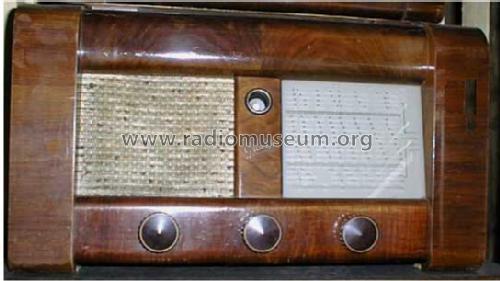

• Model: Super 48GW - Graetz Radio, Berlin Treptow

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 605 x 340 x 290 mm / 23.8 x 13.4 x 11.4 inch

• Notes
• variable Bandbreite·

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 260.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
