• Country
• United States of America (USA)

• Manufacturer / Brand
• Grant Company, W.T. (Grantline); New York (NY)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151606

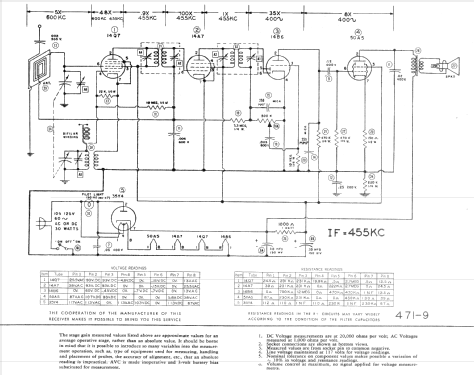

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 14Q7 14A7 or 12B7 14B6 50A5 35Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Grantline 651 - Grant Company, W.T. Grantline;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• The Grantline model 651 from W.T. Grant Company is an AC-DC Superheterodyne - Self Contained Loop Antenna.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 11, Folder 471-9)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
