Piccolo-Dynamo W Wechselstrom
Grawor, Rundf.techn.Erz. Grass & Worff (REG); Berlin
- Country
- Germany
- Manufacturer / Brand
- Grawor, Rundf.techn.Erz. Grass & Worff (REG); Berlin
- Year
- 1932
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 240088
-
- alternative name: Gravor

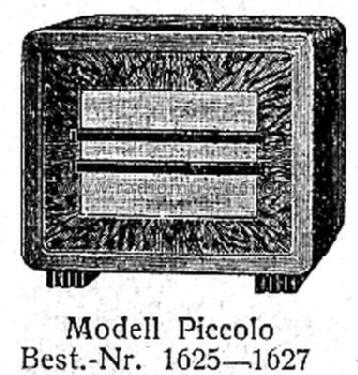

Radio-Schnorr 1934
Radio-Schnorr 1934

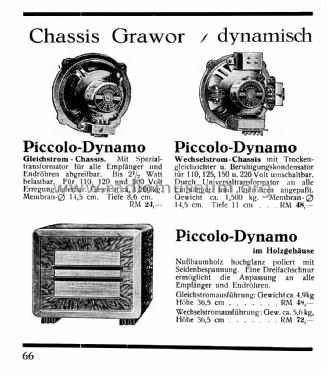

Radio-Katalog 1932-1933 Albert Schön, Berlin
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14.5 cm = 5.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Piccolo-Dynamo W [Wechselstrom] - Grawor, Rundf.techn.Erz. Grass
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 0 x 365 x 0 mm / 0 x 14.4 x 0 inch
- Notes
-
Spezial-Transformator für alle Empfänger und Endröhren. Lieferbar für alle gängigen Spannungen.
Wird auch mit Chassis für Gleichstrom geliefert und ab 1934 mit Permanentmagnet.
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Price in first year of sale
- 63.00 RM
- Mentioned in
- Katalog Radio-Schnorr Nr.54, 1934 (Radio-Katalog 1932-1933 Albert Schön, Berlin)
- Author
- Model page created by João-Afonso Santos. See "Data change" for further contributors.
