Remler Cameo 14

• Country
• United States of America (USA)

• Manufacturer / Brand
• Remler Co. Ltd.; San Francisco

• Year
• 1930/1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43429

• • alternative name: Gray & Danielson || Remler Radio Manuf.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 224 224 224 227 245 280

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

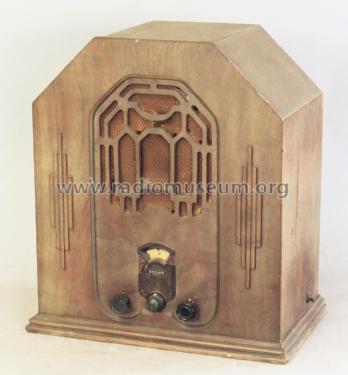

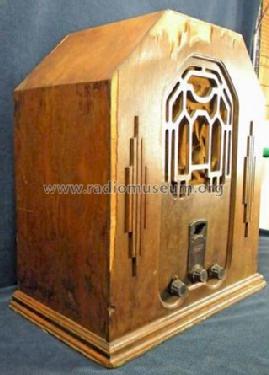

• Model: Remler Cameo 14 - Remler Co. Ltd.; San Francisco

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• The Rmler Cameo 14 has a 3-gang variable capacitor for tuning. Rider's and the book "Radio Collector`s Guide 1921-1932" (simply as model 14) list this model under "Gray & Danielson Mfg. Co." because at time of this model "Remler Co. Ltd." had the name "Gray & Danielson Mfg. Co.", but was renamed in 1931 again "The Remler Company Ltd." as it was (similar) up to 1922. We list all products under the name Remler.

• Price in first year of sale
• 64.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Cathedral & Tombstone Radios (page 228 & page 227.)
