762-L Prest-O-Matic (Prestomatic)
Grebe, A.H. & Co.; Richmond Hill (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Grebe, A.H. & Co.; Richmond Hill (NY)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 210499
-
- Brand: Synchrophase
Ad in Radio Today, November 1937, page 66.
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 762-L Prest-O-Matic - Grebe, A.H. & Co.; Richmond
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16.75 x 10.75 x 8.25 inch / 425 x 273 x 210 mm
- Notes
-
Two Bands: 16-53, 173-555 meters.
For the date see the 3 models, 782-1, 762-L and 782-T in an ad of "Radio Today, November 1937, page 66 and a folder with the same models and more:
Challenger 3, Challenger 3C, 762L, Challenger 5, Challenger 5 L.W., 782L, 782-1, 782T, Challenger 1, Challenger 2 plus the phonograph combination models 782-P8 with Prest-O-Matic instantaneous tuning, 307-P8, 803-P8 and the following models which can be installed with the long wave band for 835-2050 metres: 309-P8, 903-P8, 3012-P8 and 1203-P8.See also the corresponding Garod models with the same cabinets and chassis, like Challenger I, Challenger III, 782-1 etc. Examples: the schematic for 1203 Series is the same for Garod 1203T, 1203L, 1203-3, 1203-P6, 1203-P7, 1204ET, 1204E1 (1204EL), 1204-3, 1204E-P6 and 1204E-P7.
- Source of data
- Machine Age to Jet Age II
- Literature/Schematics (3)

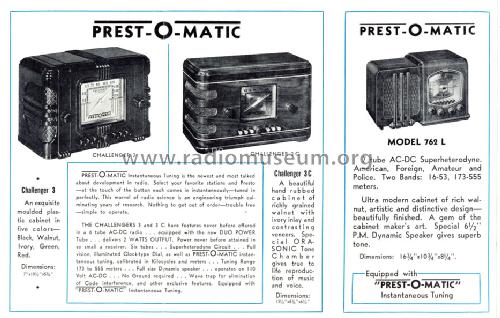

- The Grebe Folder for 1937/38 "Prest-O-Matic".
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
