782-L Prest-O-Matic (Prestomatic)
Grebe, A.H. & Co.; Richmond Hill (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Grebe, A.H. & Co.; Richmond Hill (NY)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 210500
-
- Brand: Synchrophase
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 782-L Prest-O-Matic - Grebe, A.H. & Co.; Richmond
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 21.5 x 11.25 x 9.5 inch / 546 x 286 x 241 mm
- Notes
-

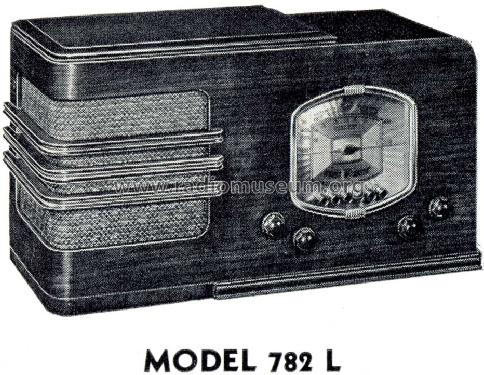

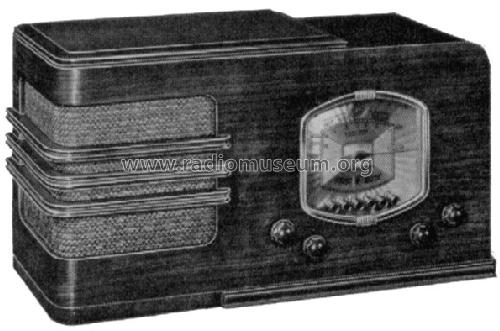

The 782-L Prest-O-Matic (Prestomatic) has push-button tuning for 6 stations. 8-inch dynamic speaker, Walnut Cabinet. Two bands: 16-53 and 173-555 meters.
See also the two other models for the season 1937/38 according to "Radio Today", November 1937, page 66: 782-1 and 762-L.
See the full range for 1937/38 according to a folder with Challenger 5, Challenger 5 L.W., Prest-O-Matic 782L, 782-1, 782T, Challenger 1, Challenger 2, Challenger 3, Challenger 3C and model 762L Prestomatic plus the Phonograph-Combinations: 782-P8 with Prest-o-matic instantaneous tuning and 307-P8, 803-P8 and the models where a long wave band for 835-2050 meters can be installed: 309-P8, 903-P8, 3012-P8 and 1203-P8. According to Stein-Books you can find the same cabinets and chassis for Garod - at least from several of above models. There seems also to be a model 309-L with probably 7 tubes besides the 309-P8 with 9 tubes and phonograph.
- Source of data
- Machine Age to Jet Age II
- Mentioned in

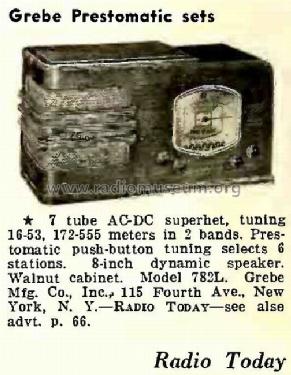

- Radio Today (and Television) (November 1937, page 32 and page 66 (for 762L, 782-1 and 782T))
- Literature/Schematics (3)
- The Grebe Folder for 1937/38 "Prest-O-Matic".
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
