CR14

• Country
• United States of America (USA)

• Manufacturer / Brand
• Grebe, A.H. & Co.; Richmond Hill (NY)

• Year
• 1923

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43506

• • Brand: Synchrophase

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UV199 UV199 UV199

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: CR14 - Grebe, A.H. & Co.; Richmond

• Shape

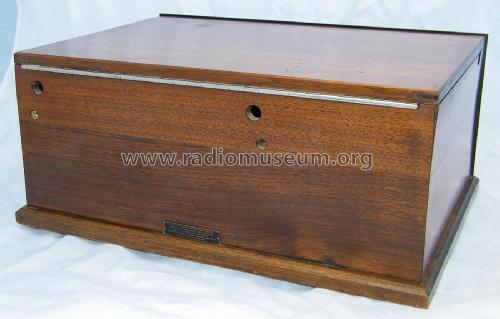

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• A simplified model CR-12, using UV199's only.

• Price in first year of sale
• 110.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Radio Manufacturers of the 1920's, Vol. 2
