Synchrophase MU1 with chain

Grebe, A.H. & Co.; Richmond Hill (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Grebe, A.H. & Co.; Richmond Hill (NY)

Year
1926

perfect model

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
43540

- Brand: Synchrophase

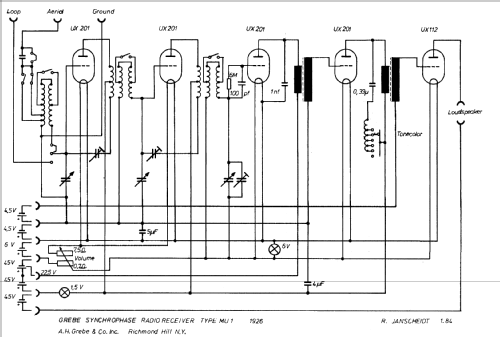

Schematics

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 380988) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (3)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 1359108) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (3)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 2784744) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 2784756) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 2784755) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 1177305) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 1177306) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 1177304) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 174080) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 174074) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 174077) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 174076) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 174068) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 65012) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 65011) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 1890528) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 1698064) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 2434406) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 204982) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)
USA Grebe MU1

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 204983) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)
USA Grebe MU1 Innen

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 814976) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (2)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 814975) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (2)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 91368) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (2)
Inside left. Courtesy Rich Fout, USA

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 733286) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)
Innenansicht

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 266911) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (2)
By courtesy of William Kendrick, USA

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 353830) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (2)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 733285) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)
Chassisansicht hinten

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 733287) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 733288) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 733289) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 814974) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (2)

Synchrophase MU1 with chain; Grebe, A.H. & Co.; (ID = 916381) Radio — Grebe, A.H. & Co.; Synchrophase MU1 with chain (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
UX201A UX201A UX201A UX201A UX201A or UX171A or UX112

Main principle
TRF without regeneration; Neutrodyne

Tuned circuits
3 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Storage and/or dry batteries

Loudspeaker
- For headphones or amp.

Material
Wooden case

from Radiomuseum.org
Model: Synchrophase MU1 with chain - Grebe, A.H. & Co.; Richmond

Shape
Tablemodel, Box - most often with Lid (NOT slant panel).

Dimensions (WHD)
22 x 9 x 17 inch / 559 x 229 x 432 mm

Notes
Three dials (primary tuning control knobs) Synchronized by a chain, can be individually tuned.

By 1927 it could have a UX112A with half of the cathode current than the UX112, but not before.

Price in first year of sale
155.00 $

External source of data
Ernst Erb

Source of data
Radio Collector`s Guide 1921-1932

Mentioned in
Collector's Guide to Antique Radios 4. Edition

Literature/Schematics (1)
Radio Set Socket Layout 1921 to 1935, RCA (p.41)
