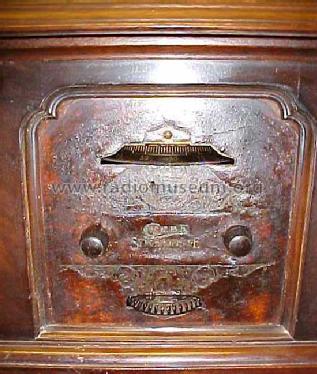

Synchrophase 7 battery
Grebe, A.H. & Co.; Richmond Hill (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Grebe, A.H. & Co.; Richmond Hill (NY)
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 43568
-
- Brand: Synchrophase
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Valves / Tubes
- CX301A CX301A CX301A CX301A CX301A or CX300A or CX112A CX301A or CX112A CX371A or CX112A
- Main principle
- TRF without regeneration; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 5 & -4.5 & -40 or -13 & 90 & 180 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Synchrophase 7 [battery] - Grebe, A.H. & Co.; Richmond
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 600 x 270 x 340 mm / 23.6 x 10.6 x 13.4 inch
- Notes
-
2nd AF: the CX371A needs -40 V for C, a CX112A only 13 V!
4 RF stages.
By use of a Socket Power Unit 671-B the Radio can be converted for AC mains operation.
- Price in first year of sale
- 135.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Radio Manufacturers of the 1920's, Vol. 2
- Literature/Schematics (3)
- Radio Retailing (Radio & Television R.) (ad June 1927 page 5.)
