• Country
• Germany

• Manufacturer / Brand
• FG Elektronik, Franz Grigelat; Rückersdorf/Nürnberg

• Year
• 1979

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 293750

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Audio-Amplification; Hi-Fi-High End products

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (2 W max.)

• Material
• Metal case

• from Radiomuseum.org

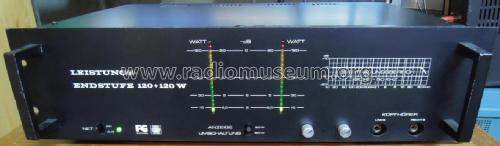

• Model: 19-Zoll-Leistungsendstufe 120+120 Watt - FG Elektronik, Franz Grigelat;

• Shape
• Rack

• Dimensions (WHD)
• 440 x 130 x 260 mm / 17.3 x 5.1 x 10.2 inch

• Notes

• Technische Daten:

  Nennausgangsleistung:               2 x 120 Watt

  Lastwiderstand:                           4 Ohm

  Betriebsspg.                                230V~

  Klirrfaktor bei 1/2 Pa nenn             0,4 %

  Neineingangsspg.                         1,3 Veff

  Eingangswiderstand:                     40 kOhm

  Spannungsfrequenzgang:                10 Hz - 50 kHz

  Fremdspg. Abstand:                      > 80 dB

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Bernhard Koob. See "Data change" for further contributors.

• Other Models

• Here you find 41 models, 27 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from FG Elektronik, Franz Grigelat; Rückersdorf/Nürnberg
