• Country
• Germany

• Manufacturer / Brand
• FG Elektronik, Franz Grigelat; Rückersdorf/Nürnberg

• Year
• 1990 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 264480

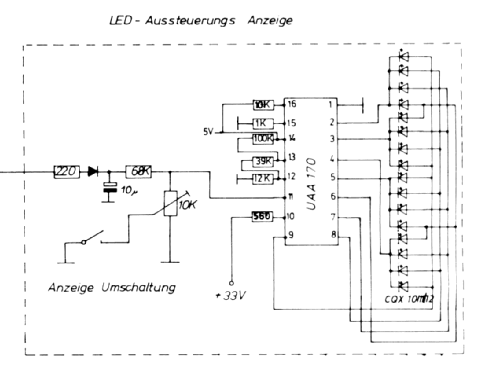

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• UAA170

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / DC: 12-18 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

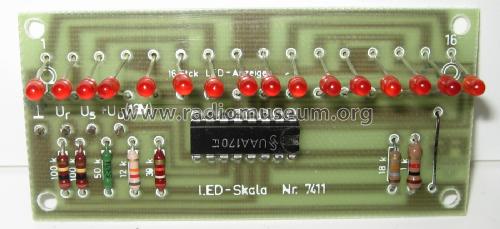

• Model: LED-Skala Nr. 7411 - FG Elektronik, Franz Grigelat;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 85 x 40 x 28 mm / 3.3 x 1.6 x 1.1 inch

• Notes

• Einbaufertiges LED-Anzeigemodul mit 16 roten 3 mm-Leuchtdioden. Verwendung als Leuchtskale oder NF-Aussteuerungsanzeige.

• Net weight (2.2 lb = 1 kg)
• 0.015 kg / 0 lb 0.5 oz (0.033 lb)

• Price in first year of sale
• 17.90 DM

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
