• Country
• United States of America (USA)

• Manufacturer / Brand
• Grommes Precision Electronics, Inc.; Chicago (IL)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139852

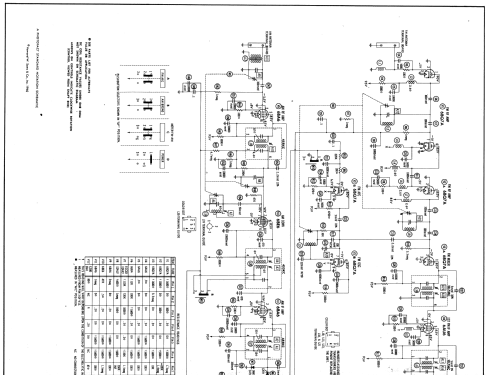

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BQ7A 6BQ7A 6BQ7A 6AU6 6AU6 6U8A ECC83 12AU7 6BA6 6BE6 6BA6 EZ80

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Premiere Stereo 103GT - Grommes Precision Electronics,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Mono tuner with Multiplex output; independent AM and FM sections for "Simulcast" AM-FM-Stereo; an external Decoder is required for FM-Mpx-Stereo.

• Literature/Schematics (1)

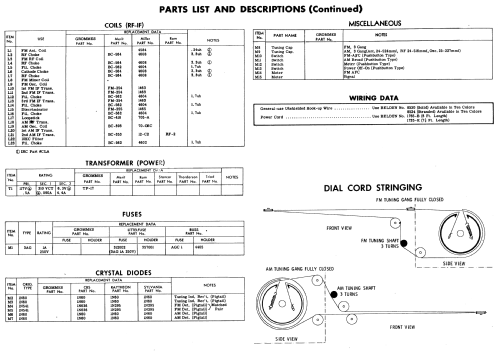

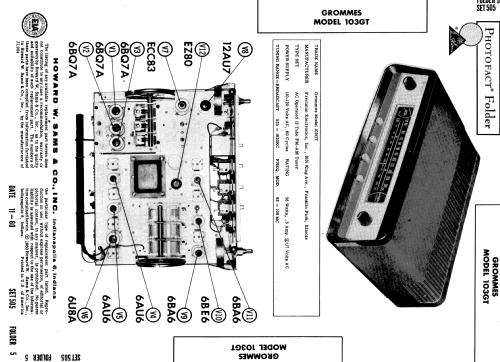

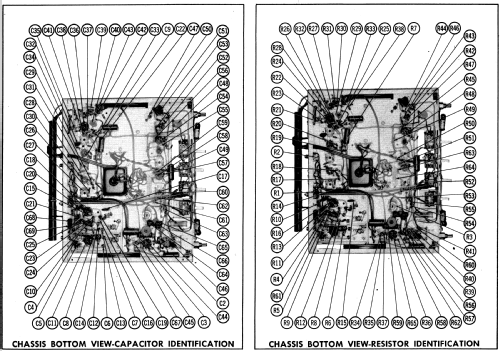

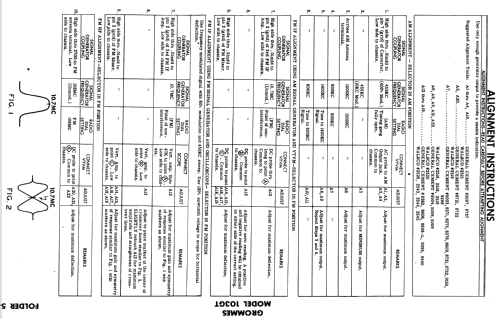

• Photofact Folder, Howard W. SAMS (Set 505 folder 5 date 11-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
