• Country
• Soviet Union

• Manufacturer / Brand
• Grozny SINTAR Radiotechnical Works

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127573

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 16 cm = 6.3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

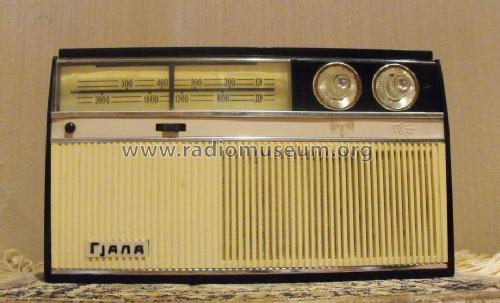

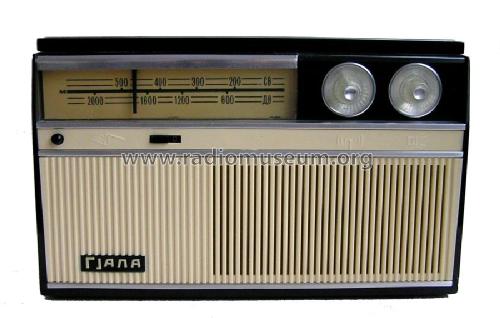

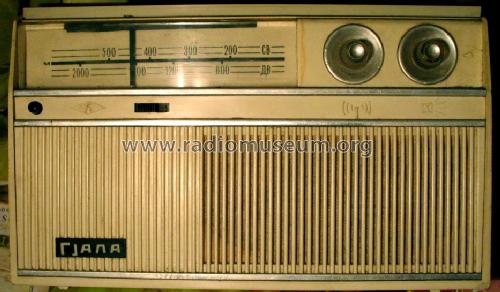

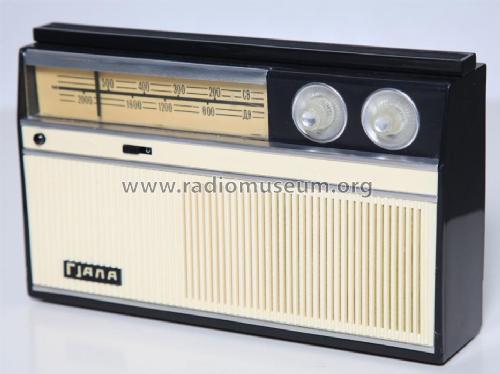

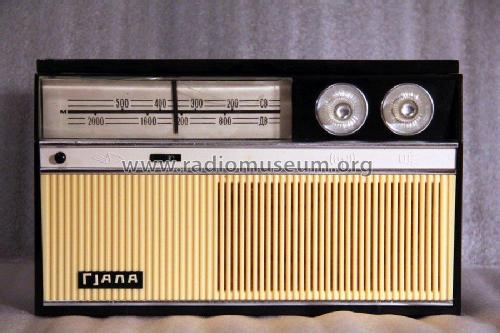

• Model: Гиала Giala, Gjala - Grozny SINTAR Radiotechnical

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 255 x 156 x 75 mm / 10 x 6.1 x 3 inch

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 31.00 Rubel

• Source of data
• - - Data from my own collection

• Mentioned in
• amateurreihe electronica H. 112

• Literature/Schematics (1)

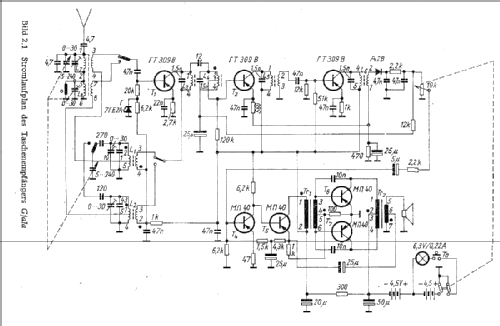

• -- Schematic

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
