• Country
• Soviet Union

• Manufacturer / Brand
• Grozny SINTAR Radiotechnical Works

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110484

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• ГТ309 ГТ309 ГТ309 ГТ108 ГТ108 ГТ108

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 3,6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

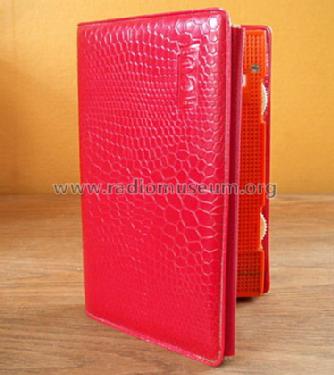

• Model: Surpris - Sûrpriz - Сюрприз - Grozny SINTAR Radiotechnical

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 130 x 80 x 7 mm / 5.1 x 3.1 x 0.3 inch

• Notes
• Needs extern power charger 127/220 V.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
