102U

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115191

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

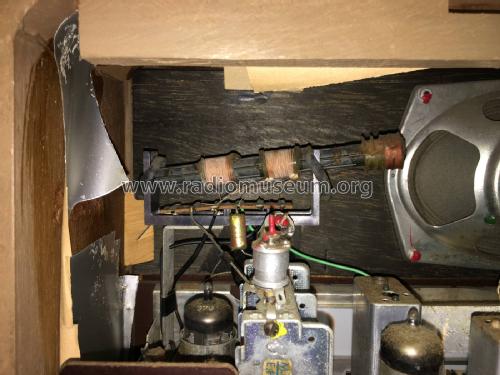

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC85 EAF801 ECL86

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 102U - Grundig Radio-Vertrieb, RVF,

• Shape

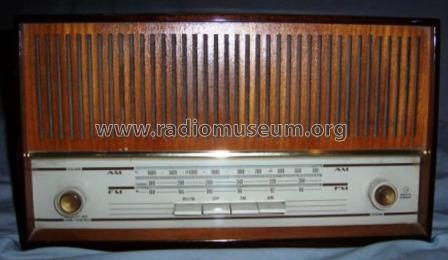

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 14.75 x 8.5 x 6 inch / 375 x 216 x 152 mm

• Notes
• Grundig 102 U;
  Made for export to the United States.
  FM: 87...108 MHz,
  AM: 510...1620 kHz,

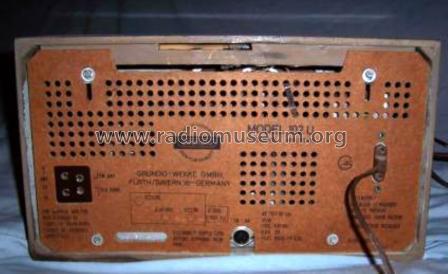

  tone control, has 5-pin DIN terminal to connect a record player or tape recorder.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
