- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248010
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Picture from Grundig Majestic Brochure
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); Export model
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1097 U - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 21.5 x 13.5 x 8 inch / 546 x 343 x 203 mm
- Notes
-
Grundig 1097 U is an export model for the USA.

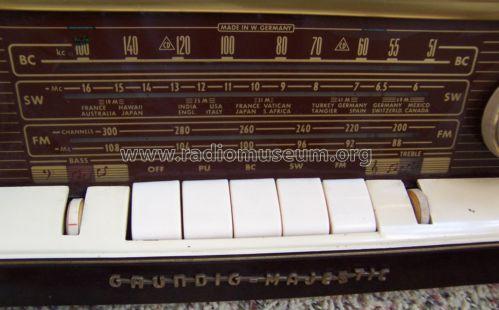

BC band with CD marks, refer to Conelrad: Radio meets the Civil Defense
Back panel states 7 AM circuits, in fact it is a 6 circuit design.See also the domestic model Musikgerät 1097.
- Author
- Model page created by Daniel Burkei. See "Data change" for further contributors.
