• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 106397

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

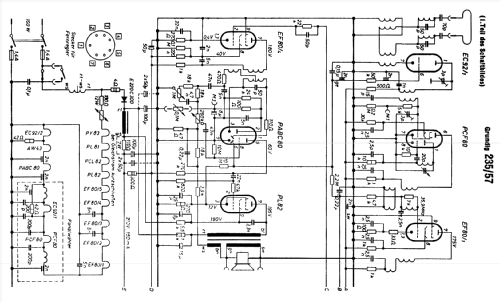

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• EC92 PCF80 EF80 PABC80 PL82 PCL82 PL81 PY83 DY86 AW43-80

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 235/57 - Grundig Radio-Vertrieb, RVF,

• Notes
• Röhren teilweise mehrfach vorhanden. Wellenbereiche Band I & III.

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
