• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1876

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UM11

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

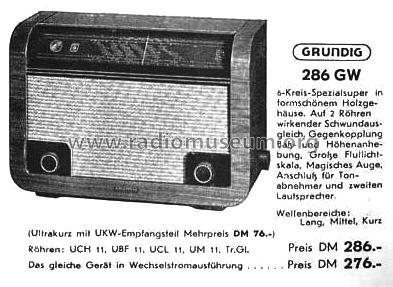

• Model: 286GW [1950] - Grundig Radio-Vertrieb, RVF,

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 4
