3090/56

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101320

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

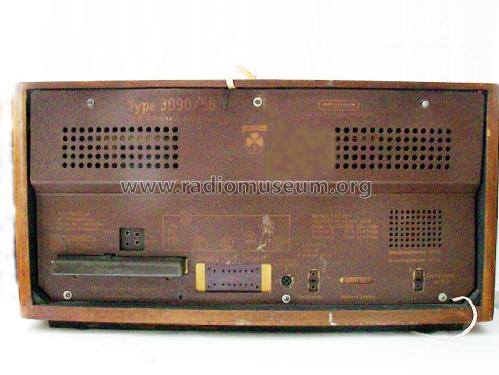

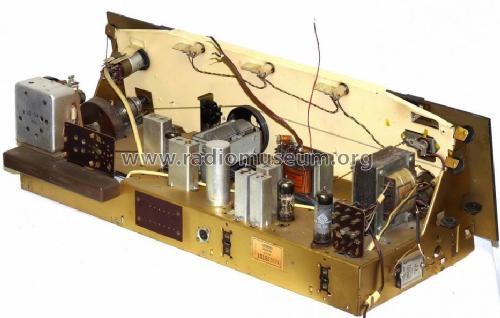

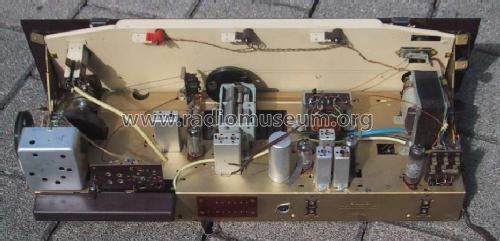

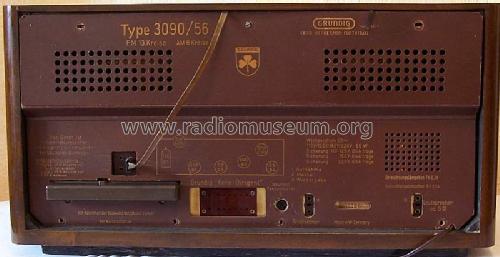

• Picture
• Schematics

Previous Next

Previous Next

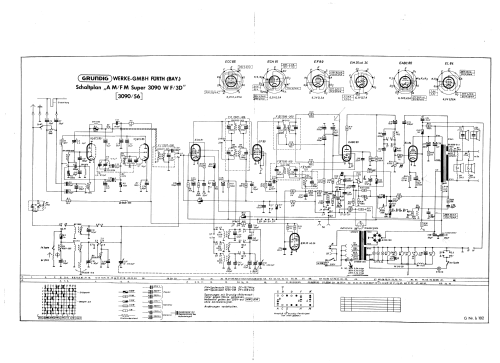

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM35 EL84

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3090/56 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 678 x 357 x 330 mm / 26.7 x 14.1 x 13 inch

• Notes
• Identisch mit 3090WF/3D. Die Bezeichnung 3090WF/3D stammt aus dem Katalog. Die Geräte selbst sind mit 3090/56 bezeichnet.
  Anschlussmöglichkeit für Ferndirigent. Lautsprecher: 2 Tieftöner 17 x 26 cm; 2 Hochtöner 7,5 x 7,5 cm. Leistungsaufnahme 50 Watt.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Walter Haring. See "Data change" for further contributors.
