- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1954/1955
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 20001
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Lange
Lange
Lange

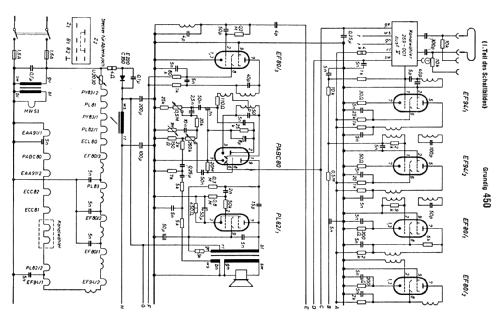

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- PCC84 PCF82 EF94 EF94 EF80 EF80 EAA91 PL83 EF80 PABC80 PL82 EAA91 ECC81 PL82 ECC82 PL81 ECL80 PY83 PY83 DY80 MW53-20
- Main principle
- Superheterodyne (common); ZF/IF 27000 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 450 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 650 x 670 x 540 mm / 25.6 x 26.4 x 21.3 inch
- Notes
- 11 VHF-Kanäle + 2 Reserve.
- Price in first year of sale
- 1,145.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55
