• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73653

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EF80 EM84 EBC81 ECC83 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

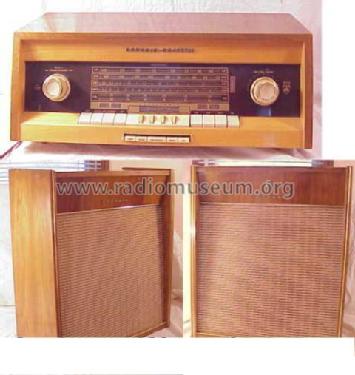

• Model: Majestic 5199WE [Export] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Notes
• TUNER AMPLIFIER, AUDIO STEREO ONLY. IMPORTER IN U.S.A.: MAJESTIC INTERNATIONAL SALES.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 8-61. SET 543, folder 9)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
