• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101257

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF80 PC88 PC93 EF183 EF80 EF80 PABC80 PL82 PCL84 EF80 PCL85 PC92 PL36 PY88 DY86 23SP4

• Number of Transistors

• Semiconductors
• AF116 OA91 OA90 or. OA160 OA161 or. OA80 E62,5C5 E62,5C5 OY101_AEG or. OY241 V250C15

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

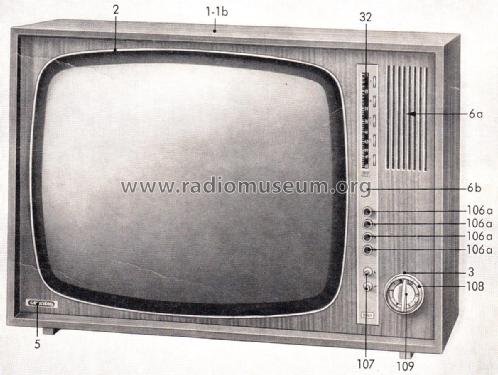

• Model: Zauberspiegel FT208 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 740 x 520 x 360 mm / 29.1 x 20.5 x 14.2 inch

• Notes

• VHF/UHF. Technische Daten wie Zauberspiegel FT205, jedoch andere Bildröhre. Einheitspreis für Nußbaum, Rüster oder Teak.

  Anschluss für Kabelfernbedienung Fernregler V (5).

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,158.00 DM

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundig, ETL-Liste, September 1962)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
